In today’s industrial world, getting the flow just right is more important than ever. Understanding the perks of Trunnion Mounted Ball Valves is a big part of that. WELCO Valve Co., Ltd. really stands out when it comes to designing, casting, making, selling, and servicing a wide range of valves. They’ve got everything from Trunnion Mounted Ball Valvesand Gate Valves to globe valves, check valves, butterfly valves, power-station valves, and even special custom valves. With such a broad lineup and a knack for innovation, WELCO is well-equipped to help boost your operation’s efficiency and reliability.
Using Trunnion Mounted Ball Valves can really make a difference—imagine better flow control, less pressure loss, and tougher, longer-lasting valves. That’s why a lot of industries prefer them for tough jobs. This guide will walk you through what makes these valves tick, their benefits, and where they’re best used, so you can see how they might help optimize your flow systems.
Overview of Trunnion Mounted Ball Valves and Their Operation Principles
Trunnion-mounted ball valves might not be the most glamorous stuff out there, but they’re honestly pretty important when it comes to controlling flows in industrial setups. These valves are built for tough jobs — especially under high pressure — and their clever design makes a big difference. The key thing about them is their special mounting system, which lets the ball pivot at both ends. This means less torque is needed to turn the valve, making operation smoother and easier. Plus, because they’re designed to stay stable and wear out less, they tend to last longer and stay reliable over time.
Here’s a quick rundown of how they work: inside the valve, there’s a hollow ball that spins to open or close the flow. The trunnion — that support at the bottom — holds the ball in place, so it can rotate freely but still handle pressure changes without breaking a sweat.
This setup not only helps control the flow more precisely but also makes sure the seal stays tight, which is crucial to avoid leaks and keep things safe in critical systems. All in all, these valves are a go-to choice in many industries where you really need steady, accurate flow control — they’re just dependable workhorses.
Key Advantages of Trunnion Mounted Ball Valves for Flow Control
Trunnion-mounted ball valves are pretty much an essential part of industrial flow control systems. They offer some serious benefits that really boost efficiency. One thing that's great about them is they can handle higher pressures and larger pipe sizes much better than your average floating ball valves. The design features a fixed ball supported by trunnions, which cuts down on wear and tear—meaning the valves last longer and don’t need to be replaced as often. Because of this, industries can keep their flow running smoothly under different conditions without worrying about the valve giving out.
Another big plus is how well these valves seal. Thanks to their design, they lock in tight even when pressure swings wildly, which helps prevent leaks and keeps the whole system safe—especially important when dealing with dangerous or hazardous materials. Plus, they’re pretty easy to operate. You can quickly control the flow of gas or liquids without fuss. All in all, the durability, reliability, and excellent sealing make trunnion-mounted ball valves a no-brainer for keeping things running smoothly in industrial settings.
Comparative Analysis: Trunnion Mounted vs. Floating Ball Valves
So, when it comes to ball valves, you’ve got the trunnion mounted ones and the floating kinds — each with their own perks and ideal uses. Trunnion mounted valves have a fixed shaft and a ball supported at both the top and bottom. That setup makes them perfect for handling higher pressures and bigger sizes without breaking a sweat. They tend to wear less over time, seal better, and last longer — especially in situations where you’re managing large volumes of flow. On the flip side, floating ball valves rely on the ball itself to seal against the seat. Because of that, they’re usually better suited for lower pressure settings and smaller dimensions.
Quick tip: When you’re picking between the two, think about your specific needs—pressure levels, flow rates, how much space you’ve got for installation. Trunnion mounted valves are great if you're dealing with critical, heavy-duty scenarios where performance and durability matter a lot. Floating valves, on the other hand, can be more budget-friendly and work just fine in less demanding cases.
And don't forget to consider what kind of fluid you’re working with. If it’s corrosive, going for a trunnion valve made of resistant materials can really extend its lifespan. To be safe, it's always a good idea to chat with a valve expert—someone who can help you pick the right one and maybe even customize it to boost performance further.
Applications of Trunnion Mounted Ball Valves in Various Industries
You know, trunnion mounted ball valves have really become a big deal across different industries lately. People are loving them because of their clever design and the practical perks they offer. Whether we're talking about oil and gas, water treatment, or chemical processing, these valves are pretty much essential for controlling flow smoothly. I came across a report by MarketsandMarkets that predicts the global ball valve market will hit around $20.18 billion by 2026. And a big chunk of that growth? Thanks to these trunnion mounted valves, especially because they’re so reliable in dealing with high-pressure and high-temperature stuff.
In oil and gas, for example, these valves are the go-to choice when it comes to handling huge amounts of fluid and making sure everything stays sealed tight, even in tough conditions. The American Petroleum Institute (API) says these valves can cut down leakage by as much as 80% compared to the older floating ball valves. That’s pretty impressive and super important, especially when you’re trying to keep the environment safe. Over in water treatment plants, trunnion mounted ball valves help control flow rates with a lot more precision—some studies, like from the International Water Association, even show efficiency boosts of over 30%. All these points just show how versatile and vital trunnion mounted ball valves are in today’s industrial world.
Maintenance Considerations for Optimal Performance of Trunnion Mounted Ball Valves
Trunnion-mounted ball valves are becoming more and more common across different industries, mainly because they’re pretty tough and do a solid job controlling flow. But here’s the thing—if you want these valves to keep working at their best, regular maintenance is absolutely key. Not only does it help them last longer, but it also keeps things safe and running smoothly. With industries like mining on the rise—especially as smart technologies start to shake things up—paying attention to maintenance is more important than ever if you want to stay ahead of the game.
Here are some tips to keep in mind:
1. Make sure you do regular inspections—check for any signs of wear and tear, especially on seals and bearings—so you can catch issues before they turn into big problems.
2. Keep everything lubricated. Doing this often helps cut down on friction and keeps the valves operating like they should.
3. And don’t forget to keep the valves clean! Dirt and contamination can clog things up and hurt performance.
As the market for valves in mining is expected to grow, adopting a proactive approach to maintenance isn’t just a good idea—it’s pretty much essential. This way, companies can not only stay reliable and efficient but also stay ready to handle whatever the industry throws their way down the line.
Flow Control Advantages of Trunnion Mounted Ball Valves
This chart illustrates the various advantages of trunnion mounted ball valves in optimizing flow control for industrial applications. Each advantage has been rated on a scale from 1 to 10, where higher values indicate stronger performance attributes conducive to operational efficiency.
Future Trends in Trunnion Mounted Ball Valve Technology and Design
As industries continue to change and grow, so does the technology behind trunnion-mounted ball valves. They're becoming more sophisticated to meet the rising need for efficiency and reliability in fluid control systems. Did you know that a recent study by Market Research Future forecasts the global valve market will grow at about 6.5% annually between 2021 and 2028? That’s mostly thanks to new advancements in valve tech — especially these trunnion-mounted designs. These valves are pretty impressive when it comes to handling high-pressure situations, which is why they’re so important for sectors like oil and gas, chemicals, and water management. After all, controlling flow precisely is a total game-changer in those industries.
Lately, there’s been a big push towards smarter, more automated designs for these valves. IoT tech is making its way into them, and honestly, it’s pretty exciting. This isn’t just about fancy gadgets; it means better predictive maintenance, less downtime, and lower costs. In fact, a report from Research and Markets expects the global market for IoT in valves to hit around $3.2 billion by 2026. As manufacturers get more into these smart solutions, trunnion-mounted ball valves will be able to offer real-time data monitoring — making operations more proactive and keeping everything running smoothly, even in super complex industrial setups.

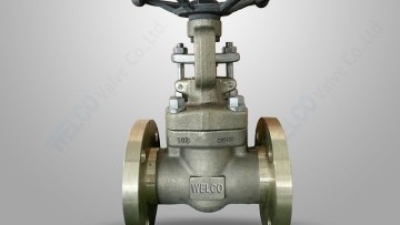

Comprehensive Guide to Understanding and Selecting the B148 C95800 Gate Valve for Optimal Performance
The B148 C95800 gate valve represents a crucial component in fluid control applications, particularly for industries requiring reliable and durable performance. With a nominal diameter of DN50 (2 inches) and a pressure rating of ANSI Class 150, this valve is engineered to effectively manage moderate pressure systems. Its robust body, crafted from ASTM B148 C95800, ensures enhanced resistance to corrosion and wear, which is vital for extending the lifespan of the valve in demanding environments.
This valve also features a compact design, which facilitates installation in space-constrained settings while maintaining operational efficiency. The solid disc and renewable seat design not only promote longevity but also ease maintenance, helping to minimize downtime in critical operations. The connection method is RF flanged per ASME B16.5, making it compatible with various piping systems and simplifying integration within existing infrastructures.
According to industry reports, such as those by the International Journal of Advanced Engineering Research and Science, the demand for bronze gate valves, like the B148 C95800, is on the rise due to their reliability in both residential and industrial applications. With handwheel operation providing straightforward manual control, this valve proves to be an optimal choice for those seeking dependable performance and ease of use in fluid management systems.
FAQS
: Trunnion mounted ball valves handle higher pressures and larger diameters than conventional floating ball valves. They feature a fixed ball supported by trunnions, which minimizes wear and extends the valve's lifespan while reducing maintenance costs. They also offer superior sealing capabilities, crucial for preventing leaks in hazardous material management, and allow for efficient flow regulation.
Regular maintenance is crucial for ensuring optimal performance, extending the lifespan of the valves, and guaranteeing safety and efficiency during operations. It helps prevent unexpected failures and maintains the reliability of the flow control systems.
Maintenance tips include scheduling routine inspections to check for wear on seals and bearings, regularly lubricating components to reduce friction, and keeping the valves clean to prevent contamination that could obstruct flow.
The global valve market is projected to grow at a CAGR of 6.5% from 2021 to 2028, driven by advancements in valve technology, including trunnion mounted designs, particularly in industries like oil and gas, chemicals, and water management.
Emerging trends include a focus on automation and digital integration, particularly the incorporation of IoT technologies, which will enhance predictive maintenance and reduce downtime by enabling real-time monitoring.
Trunnion mounted ball valves are becoming integral in sectors such as oil and gas, chemicals, and water management, where precise flow control is critical.
Their superior sealing capabilities and robust design prevent leaks even under extreme pressure fluctuations, which is essential in industries dealing with hazardous materials, thereby ensuring system integrity and safety.
IoT technology will enhance predictive maintenance, allowing for proactive management of valve operations and reducing operational costs by providing real-time monitoring capabilities.
Smart technology adoption in trunnion mounted ball valves will facilitate improved efficiency and reliability in fluid control systems, addressing the evolving demands of increasingly complex industrial environments.
Conclusion
Trunnion-mounted ball valves are pretty crucial in many industrial settings. They’re great for controlling flow smoothly thanks to their smart design and how they operate. What’s cool about these valves is that they’ve got a fixed trunnion supporting the ball, which means they tend to wear out less than the usual floating ball valves. They’re especially reliable under high pressure and hot conditions—which makes them a go-to choice across a bunch of industries like oil and gas, or water treatment plants.
At WELCO Valve Co., Ltd., we really get how important these valves are. That’s why we pour a lot of research and effort into designing and producing a wide variety of them. We’re always thinking about ease of maintenance and the tech trends that are shaping the future. Our goal? To make high-performance valves that are dependable and effective, all while evolving to meet what the market needs. It’s all about ensuring your flow control is reliable, no matter the challenge.
