When it comes to industrial valves, the Trunnion Mounted Ball Valve definitely catches your eye thanks to its unique design and how well it works. As John Smith, a well-known expert in valve tech at Global Valve Solutions, puts it, "The Trunnion Mounted Ball Valve provides incredible stability and control, especially in high-pressure situations." Basically, this design has a ball held in place by trunnions at the top and bottom, which keeps it steady while also helping prevent torsion stresses that could cause it to wear out or fail sooner than it should.
Getting a good grip on the main features of Trunnion Mounted Ball Valves is pretty important for engineers and tech folks looking to get the most out of their equipment. They’re great for better sealing, and they also need less torque to operate—so, naturally, they bring a lot of benefits to industries like oil and gas, water treatment, and chemical manufacturing. In this article, I’ll walk you through the top 10 features of these valves that every industry pro should know about. That way, you can make smarter choices when picking the right valve for your specific needs.
Understanding Trunnion Mounted Ball Valves: A Comprehensive Overview
Trunnion mounted ball valvesare essential components commonly used in various industries for optimizing fluid control systems. Featuring a design that incorporates a trunnion to support the ball, these valves can withstand high pressures and provide superior sealing capabilities. This robust design allows for better stability and reduced wear, which drastically improves their lifespan compared to traditional Floating Ball Valves. The trunnion mount also means that these valves can accommodate larger sizes without compromising operational integrity, making them a popular choice in applications involving high-flow rates.
One of the key advantages of trunnion mounted ball valves is their ability to handle high pressure and high temperature scenarios, which are typical in oil, gas, and chemical industries. The versatility of these valves is further enhanced by their ability to allow for both on/off and throttling functions, facilitating efficient flow control. Additionally, maintenance is simplified due to their straightforward design, which typically allows for in-line repairs and less downtime. Understanding these features is crucial for engineers and technicians as they select suitable valve types for their specific operational needs, ensuring they achieve reliability and efficiency in their systems.
Key Design Features of Trunnion Mounted Ball Valves
Trunnion mounted ball valves are essential components in various industrial applications, known for their robust design and reliable performance. One of the key design features is their ability to handle high pressures and flow rate variations, owing to the unique mounting system. The trunnion design provides enhanced stability, reducing the risk of valve deformation under extreme conditions. This stability not only improves the valve’s lifespan but also ensures a tight seal, minimizing the risk of leakage.
Another significant feature is the reduced operating torque, which is made possible through the support structure of the trunnion. This design allows for easier manual or automated operation, making it an ideal choice for larger pipelines. Furthermore, trunnion mounted ball valves often incorporate a blowout-proof stem design, providing added safety by preventing the stem from being ejected in the event of a failure.
Tips: When selecting a trunnion mounted ball valve, consider the material options available for the body and seats, as these can greatly affect compatibility with your media. Ensure proper maintenance with regular inspections to catch any signs of wear early, as this can significantly improve the valve's longevity and effectiveness.
Advantages of Using Trunnion Mounted Ball Valves in Industry

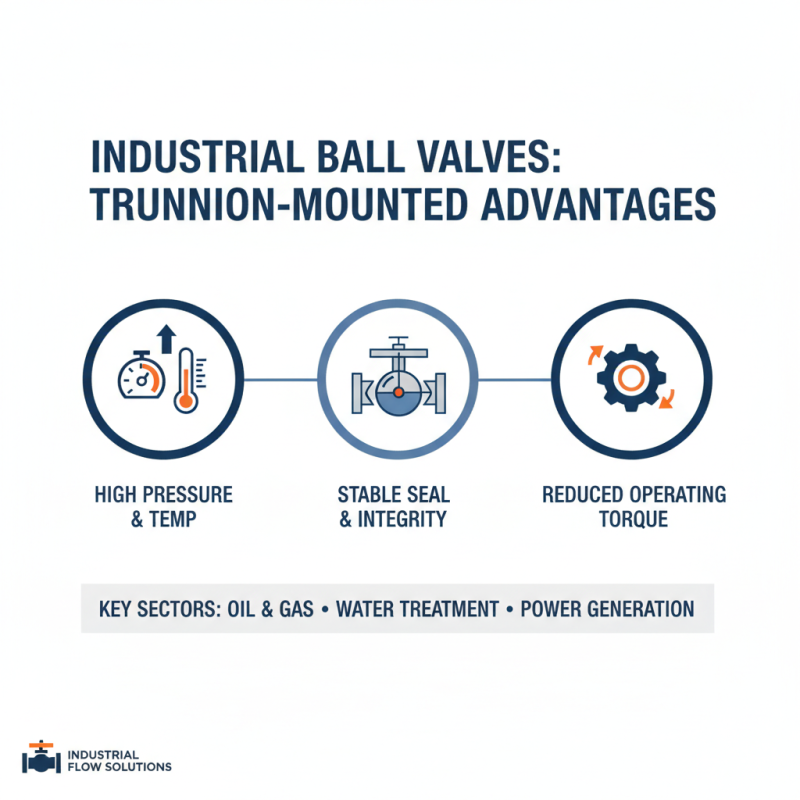

Trunnion mounted ball valves are increasingly preferred in industrial applications due to their distinctive design and numerous advantages. One primary benefit is their capability to handle high-pressure and high-temperature conditions, making them ideal for critical operations in sectors such as oil and gas, water treatment, and power generation. The design features a fixed trunnion that supports the ball, allowing the valve to achieve a tight seal and maintain integrity under severe operational conditions. This setup also reduces the torque required to operate the valve, providing a more efficient and user-friendly experience.
Another significant advantage of trunnion mounted ball valves is their inherent ability to reduce the risk of leakage. Unlike floating ball valves, where the ball is free to move, the trunnion mounted design minimizes seat wear and prolongs the life of the valve. This reliability is crucial in industries where even the smallest leakage can result in safety hazards or significant financial loss. Furthermore, the robust construction of these valves enables them to handle large flow rates with minimal pressure drop, contributing to enhanced system performance and energy efficiency. As industries continue to prioritize reliability and operational efficiency, trunnion mounted ball valves are a preferred choice for a wide range of applications.
Applications and Use Cases for Trunnion Mounted Ball Valves
Trunnion mounted ball valves are widely used in various industries due to their exceptional capabilities in handling large flow volumes with minimal pressure drop. One of their primary applications is in the oil and gas sector, where they efficiently manage the flow of natural gas and crude oil in pipelines. Their design allows for reduced friction, making them ideal for high-pressure environments. Additionally, the power generation industry utilizes these valves in steam and water handling processes, ensuring operational efficiency and safety.
In the chemical industry, trunnion mounted ball valves are essential for controlling the flow of aggressive media. Their robust construction and ability to withstand corrosive substances make them invaluable in maintaining safe and efficient operations. Similarly, in water treatment facilities, these valves play a crucial role in controlling water flow and managing various processes, contributing to overall water safety and quality.
**Tips:** When selecting a trunnion mounted ball valve for your application, consider factors such as the maximum pressure and temperature limits, as well as the specific media characteristics. Ensure that the valve material is compatible with the substances it will encounter to avoid premature failure. Regular maintenance and inspection can significantly prolong the lifespan of these valves and enhance operational reliability.
Maintenance and Inspection Tips for Trunnion Mounted Ball Valves
Proper maintenance and inspection of trunnion mounted ball valves are essential for ensuring their optimal performance and longevity. According to a report by the International Journal of Engineering and Technology, regular maintenance can increase the service life of these valves by up to 25%. This involves routine examinations for leaks, wear, and corrosion. Utilizing techniques such as ultrasonic testing can assist in identifying potential failures before they occur, enabling timely repairs that can prevent costly downtime and ensure safety within the system.
Additionally, it is critical to adhere to the manufacturer's guidelines for lubrication and adjustments. A study published by the American Society of Mechanical Engineers highlights that inadequate lubrication can lead to significant operational issues, including valve stickiness and increased torque, which affects the overall efficiency of the system. Typical inspection intervals vary based on the operating conditions, with more frequent inspections recommended in harsh environments. By implementing a stringent maintenance schedule and utilizing advanced diagnostic tools, facilities can not only enhance the reliability of their trunnion mounted ball valves but also ensure compliance with industry safety standards.
Top 10 Trunnion Mounted Ball Valve Features
This bar chart illustrates the top features of trunnion mounted ball valves, indicating their importance level on a scale from 1 to 10. Understanding these features can guide effective maintenance and inspection strategies.
Comparison of Trunnion Mounted vs. Floating Ball Valves
When comparing trunnion mounted ball valves to floating ball valves, it's essential to understand the fundamental design differences and their implications on performance. Trunnion mounted ball valves feature a fixed ball – anchored at the top and bottom with a trunnion – which allows them to withstand higher pressures and larger pipe sizes. This design provides stability, making them more suitable for demanding applications, such as in oil and gas industries. The trunnion's support minimizes ball movement during operation, leading to reduced wear and tear over time.
In contrast, floating ball valves rely on the ball being free to float and create a seal against the seat. This design allows for excellent sealing capabilities but can limit their use in high-pressure scenarios due to ball displacement. Floating ball valves generally offer a more cost-effective solution for smaller diameters and lower pressure applications, making them an attractive choice for many industries. However, they may require more frequent maintenance as the seat and ball interface can wear out more rapidly under certain conditions. Understanding these distinctions helps in selecting the appropriate valve type based on application requirements, ensuring optimal performance and longevity.
Selection Criteria for Choosing Trunnion Mounted Ball Valves

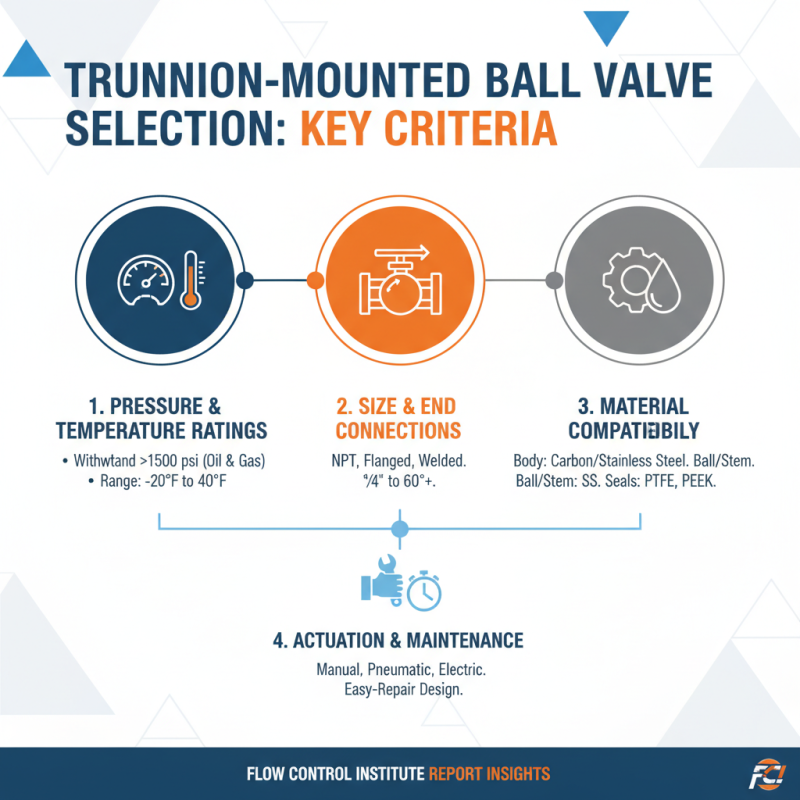

When selecting trunnion mounted ball valves, several key criteria must be considered to ensure optimal performance and reliability in various applications. One critical factor is the pressure and temperature ratings of the valve, as these parameters determine its suitability for specific operating conditions. According to a report by the Flow Control Institute, valves with appropriate pressure ratings can maintain integrity under high-pressure systems, which is often seen in oil and gas applications where conditions can regularly exceed 1500 psi. Temperature ratings, typically ranging from -20°F to 400°F for trunnion designs, are essential for avoiding material degradation and ensuring operational safety.
Another important selection criterion is the valve size and flow capacity, which are directly related to the efficiency of the fluid transport system. A study by the Valve Manufacturers Association highlights that improperly sized valves can lead to significant energy losses, with inefficiencies reaching up to 30%. It is crucial to match the valve size to the pipeline diameter and the expected flow rate, taking into consideration factors like Cv values and leakage rates. Additionally, the material composition, which influences corrosion resistance and longevity, should be evaluated based on the fluid media in use. Materials such as stainless steel and specialized alloys are often recommended for robust applications to extend the life cycle of the valve.
Comprehensive Guide to DIN Standard Globe Valves: Features, Applications, and Selection Tips
When it comes to industrial and commercial applications that require fluid control, DIN standard globe valves stand out as a reliable choice. These valves are meticulously designed to adhere to the strict guidelines established by the German Institute for Standardization (DIN), ensuring high performance and compliance with international standards. Their robust construction makes them suitable for a variety of fluids, including water, steam, and gas, which makes them indispensable in several sectors.
The features of DIN standard globe valves include precision engineering, which is critical for maintaining effective flow control and preventing leaks. Their durability means they can withstand harsh operational environments, providing not only immediate reliability but also long service life. Additionally, their design allows for easy maintenance and efficient operation, making them an excellent investment for industries that prioritize operational efficiency.
Selecting the right globe valve involves considering the specific application requirements and environmental conditions. It's essential to assess factors such as pressure ratings, temperature limits, and compatibility with the fluids being handled. By understanding these parameters, users can make informed decisions to ensure optimal performance and safety in their fluid control systems.
FAQS
: Trunnion mounted ball valves are specially designed valves that feature a fixed trunnion supporting the ball, making them suitable for high-pressure and high-temperature conditions. Their design provides a tight seal and maintains integrity, making them ideal for critical operations in various sectors such as oil and gas, water treatment, and power generation.
The design of trunnion mounted ball valves reduces the torque required for operation, resulting in a more efficient and user-friendly experience. This makes them easier to operate compared to other valve types.
Trunnion mounted ball valves significantly reduce the risk of leakage due to their fixed design that minimizes seat wear. This reliability is critical in industries where even minor leaks can pose safety risks or lead to considerable financial losses.
These valves are robustly constructed to handle large flow rates with minimal pressure drop, which contributes to enhanced system performance and energy efficiency.
The key difference is that trunnion mounted ball valves have a fixed ball, while floating ball valves feature a ball that can move freely to create a seal. This stability of trunnion mounted valves makes them more suitable for high-pressure scenarios.
Trunnion mounted ball valves are commonly used in demanding applications in industries such as oil and gas, where they can withstand higher pressures and larger pipe sizes.
Floating ball valves tend to be more cost-effective for smaller diameters and lower pressure applications due to their simpler design, though they may require more frequent maintenance.
Floating ball valves may necessitate more frequent maintenance compared to trunnion mounted valves because the seat and ball interface can wear out more quickly under certain operating conditions.
Conclusion
Trunnion Mounted Ball Valves are essential components in various industrial applications, known for their robust design and operational efficiency. Unlike traditional floating ball valves, trunnion mounted variants feature a fixed ball supported by trunnions, allowing for higher pressure capabilities and reduced torque requirements. Key design features include high strength materials, reduced leakage potential, and enhanced adaptability in extreme conditions.
The advantages of using Trunnion Mounted Ball Valves include their reliability, longevity, and suitability for high-pressure and large-diameter pipelines. Common applications range from oil and gas to chemical processing. Proper maintenance and inspection are crucial to ensure their performance, while understanding the differences between trunnion mounted and floating ball valves aids in selecting the right type for specific needs. Overall, the selection criteria for these valves should consider factors such as pressure rating, size, and application requirements to optimize functionality and safety in operations.
