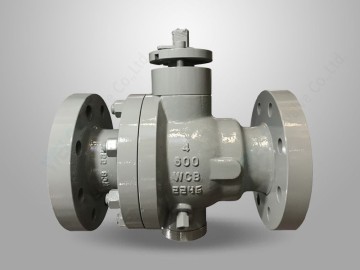

Cast Steel Trunnion Mounted Ball Valve

Cast steel ball valves are designed manufactured to provide maximum service life and dependability. All ball valves are full ported and meet the design requirements of American Petroleum Institute standard API 608&API 6D British standard BS5351 and generally conform to American society of Mechanical Engineers standard ASME B1634 valves are available in a complete range of body/bonnet materials and trims.
Standard body/bonnet materials include nine grades of carbon, low temperature alloy steel, for special applications they can be supplied in other grades of ally and stainless steel, there's a full range of trim materials to match any service optional packing and gasket materials are available for a full ranges of service conditions.

product details

Product parameter

Detail introduction

A - Operating: Extended lever for easy operation. Also available with gearing, motor actuators, pneumatic or hydraulic actuators for more difficult services

B - Body & bonnet: Split or 3-piece,split body& bonnet for 12 & small. Disassembles easily for repair or replacement of internal components.

C - BORE: Full bore or reduced bore. Full-bore design provides exceptional flow control.

D - End Connections: A choice of flanged RTJ flanged or butt welding end for piping flexibility.

E - Packing: Std packing multiple v-teflon packing, combined with live loading, maintains packing compression under high-cycle and severe service applications. Graphite packing is used for high- temperature situation.

F - AS: Anti statics. A metallic contact is always granted between ball and stem /body to discharge eventual statics build-up during service.

G - DDB: Double block & bleed. The body cavity is isolated when the ball is in either fully closed or fully opened position, the medium entrapped in it can easily be bled to avoid over pressure.

H - FS: fire safe designed to API607 or BS 6755 to grant their operation suitability in case of fire. Secondary metal-to metal seal acts as backup if primary seal is destroyed by fire. Valves ordered for compliance with API 607 will be provided with graphite packing and gaskets.

Design description

♦ FULL PORT/REDUCED PORT DESIGN

♦ BB.BOLTED BONNET.SPLIT BODY

♦ TRUNNION MOUNTED BALL TYPE

♦ BLOW-OUT PROOF STEM

♦ FIRE SAFE CONSTRUCTION

♦ ANTI STATICS DEVICE

♦ STOPPER DEVICE

♦ ISO 5211 MOUNTING PAD

♦ FLANGED OR BUTTWELDING ENDS

♦ AVAILABLE WITH WG OPERATOR

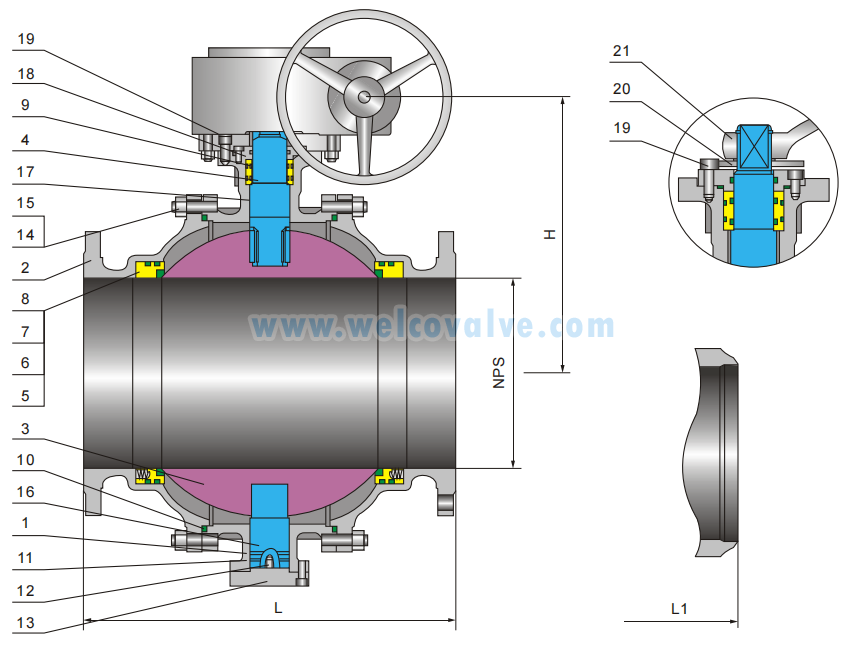

Main parts and material list

No	Part Name	ASTM Material
No	Part Name	Carbon steel	304 Type	316 Type	304L Type	316L Type	20 Alloy
1	Body	A216 WCB	A351 CF8	A351 CF8M	A351 CF3	A351 CF3M	A351 CN7M
2	Bonnet	A216 WCB	A351 CF8	A351 CF8M	A351 CF3	A351 CF3M	A351 CN7M
3	Ball	A105 ENP*1	A182 F304	A182 F316	A182 F304L	A182 F316L	20 Alloy
4	Stem	A276 410	A276 304	A276 316	A276 304L	A276 316L	20 Alloy
5	Seat	A182 F6A	A276 304	A276 316	A276 304L	A276 316L	20 Alloy
6	Seat Insert	Class filled+PTFE					Class Filled+PTFE
7	Seat Spring	A313-304	Inconel 715	Inconel 715	Inconel 715	Inconel 715	Inconel X-750
8	Seat Ring	NBR					Viton
9	Stem o-Ring	NBR					Viton
10	Bonnet Gasket	304+Graphite	304+Graphite	316+Graphite	304L+Graphite	316L+Graphite	20-Alloy+Graphite
11	Bonnet O-ring	NBR / Viton
12	Antistatic Spring	A313-304	A313-304	SS316	SS316	SS316	Inconel X-750
13	Bottom Cover	A105	A276 304	A276 316	A276 304L	A276 316L	20-Alloy
14	Bonnet Bolt	A193 B7	A193 B8	A193 B8	A193 B8	A193AB8	A193 B8
15	Bonnet Nut	AA194 2H	A194 8	A194 8	A194 8	A194 8	A194 8
16	Trunnion	A276 410	A276 304	A276 316	A276 304L	A276 316L	20 Alloy
17	Trunnion Bearing	304+FTFE	316+PIFE	316+PTFE	316+PTFE	316+PTFE	20-Alloy+PTFE
18	Gland	A105	A182 F304	A182 F316	A182 F304L	A182 F316	20 Alloy
19	Gland Bolt	A193 B7	A193 B8	A193 B8	A193 B8	A193 B8	A193 B8
20	Stop Plane	Carbon steel	Carbon steel+Zn				Carbon steel+Zn
21	Handle	Carbon steel	Carbon steel				Carbon steel
*1	A182 F304 Optional

Main Outline Dimensions & Weight Class 150Lb

NPS DN	2	2.5	3	4	6	8	10	12	14	16	18	20	24	26	28	30	32	36	in
NPS DN	50	65	80	100	150	200	250	300	350	400	450	500	600	650	700	750	800	900	mm
L/L1(RF/BW)	178	190	203	229	394	457	533	610	686	762	864	914	1067	1143	1245	1295	1372	1524	mm
L2(RTJ)	216	241	283	305	457	521	559	635	762	838	914	991	1143	1245	1346	1397	1524	1727	mm
H	177	190	210	235	530	625	650	780	790	920	970	1100	1150	1290	1400	1630	1840	2050	mm
W	350	400	500	500	600	600	600	600	800	800	800	800	800	800	800	800	800	800	mm
Weight (kg)	15	19	27	38	81	140	160	205	260	390	510	750	1200	1400	1860	2100	2530	2970	RF
Weight (kg)	13.5	15.5	24.5	32.5	76	132	147	182	241	370	495	726	1125	1250	1640	1930	2390	2760	BW

Main Outline Dimensions & Weight Class 300Lb

NPS DN	2	2.5	3	4	6	8	10	12	14	16	18	20	24	26	28	30	32	in
NPS DN	50	65	80	100	150	200	250	300	350	400	450	500	600	650	700	750	800	mm
L/L1(RF/BW)	216	241	283	305	403	502	568	648	762	838	914	991	1143	1245	1346	1397	1524	mm
L2(RTJ)	216	241	283	305	403	521	559	635	762	838	914	991	1143	1245	1346	1397	1524	mm
H	177	190	210	235	530	625	650	780	790	920	970	1100	1150	1290	1400	1630	1800	mm
W	350	400	500	500	600	600	600	600	800	800	800	800	800	800	800	800	800	mm
Weight (kg)	19	24	34	48	101	175	200	255	325	485	635	935	1500	1750	2225	2450	2870	RF
Weight (kg)	14	16	25	34	82	145	155	185	238	375	516	782	1280	1375	1825	2180	2260	BW

Main Outline Dimensions & Weight Class 600Lb

NPS DN	2	2.5	3	4	6	8	10	12	14	16	18	20	24	26	28	in
NPS DN	50	65	80	100	150	200	250	300	350	400	450	500	600	650	700	mm
L/L1(RF/BW)	292	330	356	432	559	660	787	838	889	991	1092	1194	1397	1448	1549	mm
L2(RTJ)	295	333	359	435	562	664	791	841	892	994	1095	1200	1407	1461	1562	mm
H	180	193	215	241	540	635	665	790	810	925	985	1130	1185	1335	1450	mm
W	350	400	500	500	600	600	600	600	800	800	800	800	800	800	800	mm
Weight (kg)	26	35	58	81	142	287	540	780	1000	1300	1700	2100	3400	3800	4500	RF/RTJ
Weight (kg)	19	25	42	51	85	200	395	610	805	1010	1350	1656	2775	3125	3790	BW

Main Outline Dimensions & Weight Class 900Lb

NPS DN	2	2.5	3	4	6	8	10	12	14	16	18	20	24	in
NPS DN	50	65	80	100	150	200	250	300	350	400	450	500	600	mm
L/L1(RF/BW)	368	419	381	457	610	737	838	965	1029	1130	1219	1321	1549	mm
L2(RTJ)	371	422	384	460	613	740	841	968	1038	1140	1232	1334	1568	mm
H	219	235	260	390	655	770	805	965	980	1145	1195	1360	1425	mm
W	500	500	500	600	600	600	600	800	800	800	800	800	800	mm
Weight (kg)	31	43	68	98	171	345	650	940	1205	1565	2050	2535	3950	RF/RTJ
Weight (kg)	23	31	51	61	102	240	480	735	965	1215	1625	1995	3335	BW

Main Outline Dimensions & Weight Class 1500Lb

NPS DN	2	2.5	3	4	6	8	10	12	14	16	in
NPS DN	50	65	80	100	150	200	250	300	350	400	mm
L/L1(RF/BW)	368	419	470	546	705	832	991	1130	1257	1384	mm
L2(RTJ)	371	422	473	549	711	841	1000	1146	1276	1407	mm
H	285	305	338	506	852	1000	1045	1255	1270	1485	mm
W	500	500	600	600	600	800	800	800	800	800	mm
Weight (kg)	49	67	106	153	268	540	540	1475	1885	2455	RF/RTJ
Weight (kg)	33	44	73	87	145	345	345	1050	1385	1735	BW

Main Outline Dimensions & Weight Class 2500Lb

NPS DN	2	2.5	3	4	6	8	10	12	in
NPS DN	50	65	80	100	150	200	250	300	mm
L/L1(RF/BW)	451	508	578	673	914	1022	1270	1422	mm
L2(RTJ)	454	540	584	683	927	1038	1292	1445	mm
H	305	327	362	540	911	1070	1120	1345	mm
W	500	600	600	600	800	800	800	800	mm
Weight (kg)	55	76	120	173	302	612	1150	1665	RF/RTJ
Weight (kg)	41	55	91	110	182	430	855	1315	BW
