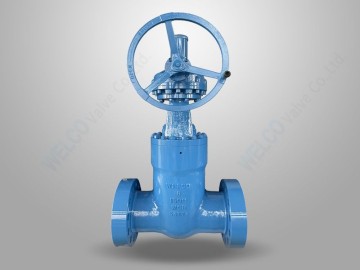

High-Quality Cast Steel Gate Valve for Sale

Cast steel gate valves are designed and manufactured to provide maximum service life and dependability. All gate valves are full ported and meet the design requirements of American Petroleum Institute standard API600&API 6D, British standard BS1414& BS EN 1984 and generally, conform to American Society of Mechanical Engineers standard ASME B16.34. Valves are available in a complete range of body/bonnet materials and trims.

Introducing our high-quality cast steel gate valves designed to deliver exceptional performance and longevity. Manufactured to meet the stringent standards of API, British, and ASME, our gate valves are full ported to ensure maximum flow and efficiency. Whether for use in the oil and gas industry or industrial applications, our valves are designed to provide maximum service life and dependability. With a complete range of body/bonnet materials and trims available, we offer versatility to meet diverse customer needs. Trust in [company name]'s reputation for excellence in engineering and manufacturing to provide reliable and durable solutions for your valve requirements

product details

Product parameter

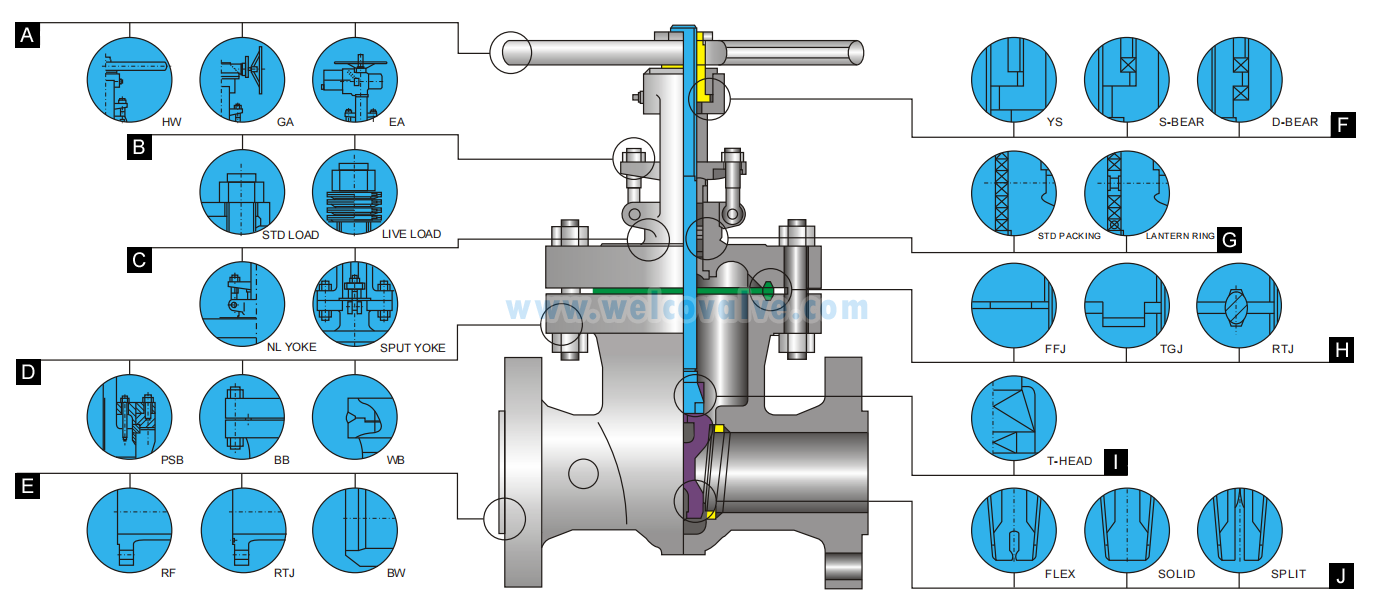

Detail introduction

A - Operating: Large hand-wheels for easy operation. Also available with gearing, motor actuators, pneumatic or hydraulic actuators for more difficult services.

B - Live Load Packing: In services requiring frequent cycling or with high pressure / temperature service life between maintenance periods by requiring less stments. Belleville springs are employed to provide constant packing gland stress.

C - OS&Y: Outside screw and yoke. Cast steel gate valve yoke integral with bonnet for 150lb-8”, 600lb - 6”, 900lb - 4” and smaller.

D - BB: bolted bonnet, welding bonnet and pressure seal bonnet in services requiring frequent cycling or with high pressure/temperature variations.

E - End Connections: A choice of flanged, RTJ flanged or butt-welding end for piping flexibility.

G - Yoke sleeve: Extra long thread engagement between yoke sleeve and stem provide long thread life. Valves of sizes larger than 150Lb-12”, 300Lb-10”, 600Lb-6”, 900Lb / 1500Lb / 2500Lb-4” are regularly provided with roll bearing yokes.

G - Lantern Ring And Double Packing Set

lantern ring leak-off fitting connection and double packing stack is optionally available for critical services.

H - Body-to-Bonnet Joint: A flat face gasket joint is used in tie 150b valves. A male and female joint is used in 300lb to 600lb valves. Ring joint is used in the body to bonnet connections in 900lb & higher rated valves.

I - Stem: All wedge gate valves are provided with upset forged T-head stems. By forging the T-head, the stem at the stem-wedge connection is strengthened.this design also allows the wedge possibility of a bent stem jamming the wedge.

J - Wedge: Integral guide rib faces assure self-centering of wedge.flexible wedge gate valve has a one- piece, twin-disc wedge, which is designed so that each half flexes independently, available in solid, flex split and his designs.

Design description

• FULL PORT DESIGN

• OS&Y OUTSIDE SRCEW AND YOKE

• BB.BOLTED BONNET

• FLEXIBLE WEDGE,FULLY GUIDED

• CHOICE OF SOLID OR SPLIT WEDGE

• RENEWABLE SEAT RINGS

• FORGED T-HEAD SIEM

• RISING SIEM AND NON-RISING HANDWHEEL

• FLANGED OR BIKIWELDING ENDS

• AVAILABLE WITH BG OPERATOR

Main parts and material list

No	Part Name	ASTM Material
No	Part Name	Carbon steel	1.25Cr-0.5Mo	2.25Cr-1Mo	304 Type	316 Type	304L Type	316L Type	20 Alloy
1	Body	A216 WCB	A217 WC6	A217 WC9	A351 CF8	A351 CF8M	A351 CF3	A351 CF3M	A351 CN7M
2	Bonnet	A216 WCB	A217 WC6	A217 WC9	A351 CFS	A351 CF8M	A351 CF3	A351 CF3M	A351 CN7M
3	Wedge	WCB+13Cr*1	A217 WC6+HF	A217 WC9+HF	A351 CF8	A351 CF8M	A351 CF3	A351 CF3M	A351 CN7M
4	Stem	A182 F6A	A182 F11	A182 F22	A182 F304	A182 F316	A182 F304L	A182 F316L	20-Alloy
5	Seat Ring	A105+13Cr*1	A182 F11+HF1	A182 F22+HF	NA				NA
6	Backseat	A276 410	A276 410	A276 410	NA				NA
7A	Bonnet Gasket	304+Graphite	304+Graphite	304+Graphite	304+Graphite	316+Graphite	304L+Graphite	316L+Graphite	316+Graphite
7B	Ring Gasket	Soft Steel	A182 F304	A182 F304	A182 F304	A182 F316	A182 F304L	A182 F316L	20-Alloy
8	Bonnet Bolt	A193 B7	A193 B7	A193 B16	A193 B8	A193 B8M	A193 B8	A193 B8M	A193 B8M
9	Bonnet Nut	A194 2H	A194 4	A194 4	A194 8	A194 8M	A194 8	A194 8M	A194 8M
10	Packing	G raphit	Graphite	Graphite	Graphite *2	Graphite *2	Graphite*2	Graphite*2	Graphite*2
11	Gland	A276 410	A276 410	A276 410	A276 304	A276 316	A276 304L	A276 316L	20-Alloy
12	Gland Flange	A216 WCB	A216 WCB	A216 WCB	A351 CF8	A351 CF8	A351 CF8	A351 CF8	A351 CF8
13	Eyebolt	Carbon Steel	A193 B7	A193 B7	A193 B8	A193 B8	A193 B8	A193 B8	A193 B8
14	Eyebolt Nut	Carbon Steel	A194 2H	A194 2H	A194 8	A194 8	A194 8	A194 8	A194 8
15	Eyebolt Pin	A276 410	A276 410	A276 410	A276 304	A276 304	A276 304	A276 304	A276 304
16	Grease Fitting	Part			Part				Commercial
17	Stem Nut	Bronze*3			Bronze				Bronze
18	Jam Nut	Carbon steel			Carbon steel				Stainless Steel
19	Hand Wheel	Malleable iron			Malleable iron				Malleable iron
20	Wheel Nut	Carbon steel			Carbon steel +Zn				Carbon steel+ZN
*1	PN > 600 class sealing face will be HF
*2	PTFE Optional
*3	Ductile Ni-Resist iron Optional
NA	Integral with vessel.

Main Outline Dimensions & Weight Class 150Lb

NPS DN	2	2.5	3	4	6	8	10	12	14	16	18	20	24	26	28	30	32	36	in
NPS DN	50	65	80	100	150	200	250	300	350	400	450	500	600	650	700	750	800	900	mm
L (RF)	178	191	203	229	267	292	330	356	381	406	432	457	508	559	610	610	711	711	mm
L1(BW)	216	241	283	305	403	419	457	502	572	610	660	711	813	864	914	914	965	1016	mm
H (open)	386	434	480	584	765	956	1149	1350	1508	1703	1892	2119	2500	2806	2960	3150	3280	3720	mm
DO	200	200	250	300	300	350	400	450	500	550	600	640	700	720	800	800	950	1000	mm
Weight (kg)	18	25	32	50	77	121	178	265	463	463	621	792	1521	1521	1838	2261	2490	3310	RF
Weight (kg)	15	18	26	41	69	108	156	248	424	424	587	752	1570	1570	1900	3310	2540	3380	BW

Main Outline Dimensions & Weight Class 300Lb

NPS DN	2	2.5	3	4	6	8	10	12	14	16	18	20	24	26	28	30	32	36	in
NPS DN	50	65	80	100	150	200	250	300	350	400	450	500	600	650	700	750	800	900	mm
L/L1(RF/BW)	216	241	283	305	403	419	457	502	762	838	914	991	1143	1245	1346	1397	1524	1727	mm
L2(RTJ)	232	257	298	321	419	435	473	518	778	854	930	1010	1165	1270	1372	1422	1553	1756	mm
H(open)	410	453	509	612	805	1000	1210	1415	1580	1725	1960	2195	2590	2975	3100	320	3300	3860	mm
DO	200	200	250	300	350	400	450	500	550	550	600	640	720	720	800	800	950	1000	mm
Weight (kg)	23	35	50	71	144	209	322	482	683	950	1145	1635	2660	3090	3310	3595	3720	3985	RF
Weight (kg)	17	26	39	53	113	164	256	390	565	805	965	1410	2305	2540	2725	3055	3360	3630	BW

Main Outline Dimensions & Weight Class 600Lb

NPS DN	2	2.5	3	4	6	8	10	12	14	16	18	20	24	26	28	30	32	36	in
NPS DN	50	65	80	100	150	200	250	300	350	400	450	500	600	650	700	750	800	900	mm
L/L1(RF/BW)	292	330	356	432	559	660	787	838	889	991	1092	1194	1397	1448	1549	1651	1778	2083	mm
L2(RTJ)	295	333	359	435	562	664	791	841	892	994	1095	1200	1407	1461	1562	1664	1794	2099	mm
H(open)	418	476	518	646	840	1025	1230	1450	1575	1795	1930	2210	2580	2665	2780	2895	3150	3560	mm
DO	200	250	250	300	450	500	600	600	600	600	640	640	720	720	800	800	950	1000	mm
Weight (kg)	36	52	67	112	170	393	610	890	1245	1530	1965	2450	2995	3475	3725	4045	4185	4480	RF
Weight (kg)	29	42	53	83	125	310	472	730	1055	1240	1625	2030	2590	2855	3065	3440	3780	4085	BW

Main Outline Dimensions & Weight Class 900Lb

NPS DN	2	2.5	3	4	6	8	10	12	14	16	18	20	24	in
NPS DN	50	65	80	100	150	200	250	300	350	400	450	500	600	mm
L/L1(RF/BW)	368	419	381	457	610	737	838	965	1029	1130	1219	1321	1549	mm
L2(RTJ)	371	422	384	460	613	740	841	968	1038	1140	1232	1334	1568	mm
H(open)	498	547	573	678	900	1103	1345	1525	1900	2055	2215	2565	264	mm
DO	250	250	300	450	500	600	640	720	800	800	950	950	1000	mm
Weight (kg)	74	131	101	172	335	640	1100	1600	2250	2850	3060	3935	4900	RF
Weight (kg)	54	105	78	135	260	515	920	1380	2010	2565	3485	3250	4065	BW

Main Outline Dimensions & Weight Class 1500Lb

NPS DN	2	2.5	3	4	6	8	10	12	14	16	18	20	24	in mm
NPS DN	50	65	80	100	150	200	250	300	350	400	450	500	600	in mm
L/L1(RF/BW)	368	419	470	546	705	832	991	1130	1257	1384	1537	1664	1943	mm
L2(RTJ)	371	422	473	549	711	841	1000	1146	1276	1407	1559	1686	1972	mm
H(open)	615	658	760	868	1005	1145	1370	1550	1900	2050	2380	2580	2915	mm
DO	250	300	450	500	600	460	460	600	600	600	600	600	600	mm
Weight (kg)	116	166	209	296	510	920	1910	3145	4100	6200	8965	13100	15860	RF
Weight (kg)	105	150	188	265	412	760	1640	2755	3200	5300	8070	11790	14275	BW

Main Outline Dimensions & Weight Class 2500Lb

NPS DN	2	2.5	3	4	6	8	10	12	in
NPS DN	50	65	80	100	150	200	250	300	mm
L/L1(RF/BW)	451	508	578	673	914	1022	1270	1422	mm
L2(RTJ)	454	514	584	683	927	1038	1292	1445	mm
H(open)	631	736	890	1055	1450	1610	2075	2280	mm
DO	300	450	500	500	600	600	600	600	mm
Weight (kg)	155	210	310	580	1600	2450	4570	7150	RF
Weight (kg)	124	160	245	460	1310	2010	3800	6000	BW
