Piston Check Valve
Applicable Standards
Standard Material Specification
|
NO. |
Part Name |
CS to ASTM |
AS to ASTM |
SS to ASTM |
|
|
Type A105 |
Type F22 |
Type F304(L) |
Type F316(L) |
||
|
1 |
Body |
A105 |
A182 F22 |
A182 F304(L) |
A182 F316(L) |
|
2 |
Piston Disc |
A276 410 |
A276 304 |
A276 304(L) |
A276 316(L) |
|
3 |
Gasket |
Corrugated SS+graphite |
SS+PTFE |
||
|
4 |
Bonnet |
A105 |
A182 F22 |
A182 F304(L) A182 F316(L) |
|
|
5 |
Nameplate |
SS |
|||
|
6 |
Bolt |
A193 B7 |
A193 B16 |
A193 B8M |
A193 B8M |
|
7 |
Ball |
A182 F304 |
A182 F304 |
A182 F304 |
A182 F304 |
|
Suitable Medium |
W.O.G.etc |
W.O.G.etc |
HNO 3 ,CH 3 OOH etc |
||
|
Suitable Temperature |
-29℃~425℃ |
-29℃~550℃ |
-29℃~180℃ |
||
Note: Other materials are available upon request.
CS=Carbon Steel; AS=Alloy Steel; SS=Stainless Steel;

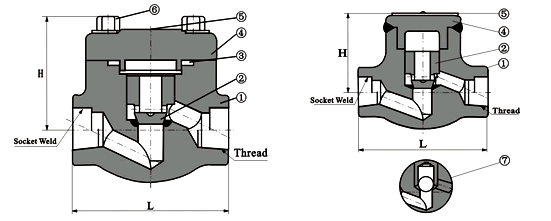

800LB. Dimension (mm) and Weight (Kg)
|
NPS |
Conv. |
3/8" |
1/2" |
3/4" |
1" |
11/4" |
11/2" |
2" |
|
|
Full |
|
3/8" |
1/2" |
3/4" |
1" |
11/4" |
11/2" |
2" |
|
|
L |
79 |
79 |
92 |
111 |
120 |
152 |
172 |
200 |
|
|
H |
61 |
61 |
65 |
79 |
95 |
103 |
118 |
132 |
|
|
Wieght |
Bolted |
1.4 |
1.2 |
1.5 |
3.1 |
3.9 |
5.6 |
8.9 |
12.5 |
|
Welded |
1.1 |
1.0 |
1.2 |
2.9 |
3.3 |
4.9 |
8.1 |
10.9 |
|
900LB~1500LB. Dimension (mm) and Weight (Kg)
|
NPS |
Conv. |
3/8” |
1/2” |
3/4” |
1” |
11/4” |
11/2” |
2” |
|
|
Full |
|
3/8” |
1/2” |
3/4” |
1” |
11/4” |
11/2” |
2” |
|
|
L |
92 |
111 |
111 |
120 |
152 |
172 |
200 |
220 |
|
|
W |
65 |
79 |
79 |
97 |
104 |
120 |
139 |
215 |
|
|
Weights |
Bolted |
1.6 |
3.4 |
3.3 |
5.5 |
6.0 |
9.2 |
12.9 |
16.2 |
|
Welded |
1.3 |
3.2 |
3.1 |
4.8 |
5.4 |
8.5 |
11.2 |
14.3 |
|
