Premium Fully Welded Ball Valve for Superior Performance

DESIGN FEATURES:
• WB: FULLY WELD BONNET TO AVOID THE POSSIBLE LEAKAGE
• TRUNION MOUNTED TYPE OR SUPPORT PLATE TYPE
• FIRE SAFE CONSTRUCTION
• ANTI-STATICS DEVICE
• STOPPER DEVICE FOR LOCKING
• ISO5211 MOUNTING PAD ON TOP FLANGE
• BUTTWELDING ENDS WITH PUPS
• AVAILABLE WITH WG OPERATOR, ELECTRIC, PNEUMATIC, HYDRAULIC ACTUATED

Introducing our latest product featuring superior design features to ensure reliability and safety. Our fully weld bonnet eliminates possible leakage, while the trunnion mounted type or support plate type provides stability and durability. The fire safe construction and anti-statics device guarantee protection and peace of mind. Additionally, the stopper device for locking, ISO5211 mounting pad, and buttwelding ends with pups, make installation and operation smooth and efficient. Available with WG operator, electric, pneumatic, and hydraulic actuated options, our product offers flexibility and convenience. Trust our company name to deliver high-quality, innovative solutions for your industrial needs

product details

Product parameter

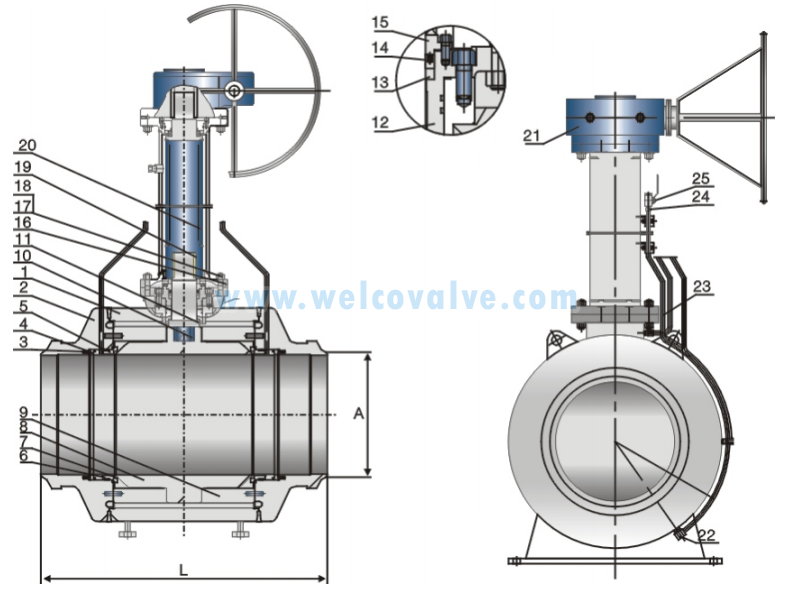

Main parts and material list

No	Part Name	ASTM Material
No	Part Name	Carbon Steel	304 Type	316 Type	304L Type	316L Type
25	Ball valve	Assemble Part	Assemble Part	Assemble Part	Assemble Part	Assemble Part
24	Plug	1045	A276 304	A276 316	A276 304L	A276 316L
23	Steel tube	A291025	A276 304	A276 316	A276 304L	A276 316L
22	PIUQ	A291045	A182 F304	A182 F316	A182 F304L	A182 F316L
21	Gearbox	Assemble Part	Assemble Part	Assemble Part	Assemble Part	Assemble Part
20	Bolt	A193 B8	A193 B8	A193 B8	A193 B8	A193 B8
19	Key	A29 1045	A29 1045	A29 1045	A29 1045	A29 1045
18	Bolt	A193 B7	A193 B8	A193 B8m	A193 B8	A193 B8m
17	Nut	A194 2H	A194 8	A194 8m	A194 8	A194 8m
16	Extend inside stem	Assemble Part	Assemble Part	Assemble Part	Assemble Part	Assemble Part
15	Gland	A105+ENP	A276 304	A276 316	A276 304L	A276 316L
14	Packing distance	A182 F304	A182 F304	A182 F316	A182 F304L	A182 F316L
13	Packing	Graphite	Graphite	Graphite	Graphite	Graphite
12	Connecting plate	A182 F6a	A182 F304	A182 F304	A182 F304L	A182 F316L
11	Gasket	304+PTFE	304+PTFE	316+PTFE	304I+PTFE	3161+PTFE
10	Stem	A182 F6a	A182 F304	A182 F316	A182 F304L	A182 F316L
9	Low cover	A105	A182 F304	A182 F316	A182 F304L	A182 F316L
8	Ball	A105+ENP	A182 F304	A182 F316	A182 F304L	A182 F316L
7	Seal	RPTFE	RPTFE	RPTFE	RPTFE	RPTFE
6	O-ring	Viton	Viton	Viton	Viton	Viton
5	Seat bear	A105+ENP	A182 F304	A182 F316	A182 F304L	A182 F316L
4	Spring seat	A105	A182 F304	A182 F316	A182 F304L	A182 F316L
3	Spring	lnconelx-750	lnconelx-750	lnconelx-750	lnconelx-750	lnconelx-750
2	Bonnet	A105	A182 F304	A182 F316	A182 F304L	A182 F316L
1	Body	A105	A182 F304	A182 F316	A182 F304L	A182 F316L

Main Outline Dimensions & Weight Class 150Lb

NPS DN	2	2.5	3	4	6	8	10	12	14	16	18	20	24	26	28	30	32	36	in
NPS DN	50	65	80	100	150	200	250	300	350	400	450	500	600	650	700	750	800	900	mm
L(RF)	178	190	203	229	394	457	533	610	686	762	864	914	1067	1143	1245	1295	1372	1524	mm
L1(BW)	216	241	283	305	457	521	559	635	762	838	914	991	1143	1245	1346	1397	1524	1727	mm
H	120	150	180	235	250	280	320	390	420	555	600	635	710	750	800	865	915	980	mm
W	400	400	600	600	600	600	800	800	800	800	800	800	800	[000	1000	1000	1000	1000	mm
Weight (kg)	28	35	55	80	190	290	445	570	780	1520	2300	2500	3950	4890	6300	7100	8950	13500	RF
Weight (kg)	25	28	49	71	182	277	553	553	747	1481	2266	2460	3904	4939	6362	8149	9000	13570	BW

Main Outline Dimensions & Weight Class 300Lb

NPS	2	2.5	3	4	6	8	10	12	14	16	18	20	24	26	28	30	32	in
DN	50	65	80	100	150	200	250	300	350	400	450	500	600	650	700	750	800	mm
L(RF)	216	241	283	305	403	502	568	648	762	838	914	991	1143	1245	1346	1397	1524	mm
L1(BW)	216	241	283	305	403	521	559	635	762	838	914	991	1143	1245	1346	1397	1524	mm
H	120	150	180	235	250	280	320	390	420	555	600	635	710	750	800	865	915	mm
W	400	400	600	600	600	600	800	800	800	800	800	800	800	1000	1000	1000	1000	mm
Weight (kg)	30	40	60	90	200	325	490	690	900	1810	2620	2860	4430	5430	6810	7655	9590	RF
Weight (kg)	24	31	49	72	169	280	424	598	872	1665	2440	2635	4075	4880	6225	7115	9230	BW

Main Outline Dimensions & Weight Class 600Lb

NPS DN	2	2.5	3	4	6	8	10	12	14	16	18	20	24	26	28	in
NPS DN	50	65	80	100	150	200	250	300	350	400	450	500	600	650	700	mm
L/L1(RF/BW)	292	330	356	432	559	660	787	838	889	991	1092	1194	1397	1448	1549	mm
L2(RTJ)	295	333	359	435	562	664	791	841	892	994	1095	1200	1407	1461	1562	mm
H	165	180	200	280	310	355	410	455	490	535	630	650	765	810	880	mm
W	400	600	600	600	800	800	800	800	800	800	1000	1000	1000	1000	1000	mm
Weight (kg)	34	53	65	125	245	505	640	910	1380	2250	3400	3850	4900	6700	8300	RF
Weight (kg)	27	43	49	95	188	418	495	740	1185	1960	3050	3406	4275	6025	7590	BW

Main Outline Dimensions & Weight Class 900Lb

NPS DN	2	2.5	3	4	6	8	10	12	14	16	18	20	24	in
NPS DN	50	65	80	100	150	200	250	300	350	400	450	500	600	mm
L/L1(RF/BW)	368	419	381	457	610	737	965	965	1029	1130	1219	1321	1549	mm
L2(RTJ)	371	422	384	460	613	740	968	968	1038	1140	1232	1334	1568	mm
H	170	190	210	290	320	390	470	470	530	610	660	700	780	mm
W	600	600	600	800	800	800	800	500	800	1000	1000	1000	1000	mm
Weight (kg)	45	65	73	135	360	650	1350	1350	1890	3100	4300	4950	7100	RF/RTJ
Weight (kg)	37	53	56	98	291	545	1145	1145	1650	2750	3875	4410	6485	BW

Main Outline Dimensions & Weight Class 1500Lb

NPS DN	2	2.5	3	4	6	8	10	12	14	16	in
NPS DN	50	65	80	100	150	200	250	300	350	400	mm
L/L1(RF/BW)	368	419	470	546	705	832	991	1130	1257	1384	mm
L2(RTJ)	371	422	473	549	711	841	1000	1146	1276	1407	mm
H	170	190	210	290	330	400	440	560	640	690	mm
W	600	600	800	800	800	800	800	1000	1000	1000	mm
Weight (kg)	55	75	95	150	880	880	1360	1980	3100	4650	RF/RTJ
Weight (kg)	40	55	65	115	685	685	1025	1555	2600	3930	BW

Main Outline Dimensions & Weight Class 2500Lb

NPS DN	2	2.5	3	4	6	8	10	12	in
NPS DN	50	65	80	100	150	200	250	300	mm
L/L1(RF/BW)	451	508	578	673	914	1022	1270	1422	mm
L2(RTJ)	454	540	584	683	927	1038	1292	1445	mm
H	190	230	280	360	400	480	520	670	mm
W	600	800	800	800	800	1000	1000	1000	mm
Weight (kg)	68	95	120	185	675	1650	1650	2300	RF/RTJ
Weight (kg)	57	74	91	122	555	1355	1355	1950	BW
