Y Pattern Globe Valve
Detail introduction

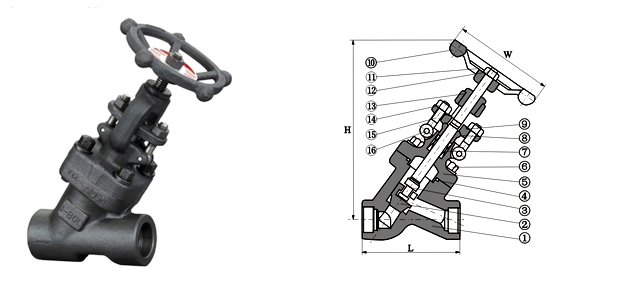

Standard Material Specification
|
NO. |
Part Name |
CS to ASTM |
AS to ASTM |
SS to ASTM |
|
|
Type A105 |
Type F22 |
Type F304(L) |
Type F316(L) |
||
|
1 |
Body |
A105 |
A182 F22 |
A182 F304(L) |
A182 F316(L) |
|
2 |
Disc |
A276 420 |
A276 304 |
A276 304(L) |
A276 316(L) |
|
3 |
Stem |
A182 F6 |
A182 F304 |
A182 F304(L) |
A182 F316(L) |
|
4 |
Gasket |
Corrugated SS+graphite |
SS+PTFE |
||
|
5 |
Bonnet |
A105 |
A276 304 |
A276 F304(L) |
A276 F316(L) |
|
6 |
Bonnet Bolt |
A193 B7 |
A193 B16 |
A193 B8 |
A193 B8M |
|
7 |
Stem Packing |
Flexible Graphite |
PTFE |
||
|
8 |
Gland |
A276 410 |
A182 F304(L) |
A182 F316(L) |
|
|
9 |
Gland Flange |
A276 WCB |
A351 CF8 |
||
|
10 |
Handwheel |
A197 |
|||
|
11 |
Nameplate |
SS |
|||
|
12 |
H.W.Nut |
A194 2H |
A194 4 |
A194 8 |
A194 8M |
|
13 |
Yoke Nut |
A276 410 |
|||
|
14 |
Gland Nut |
A194 2H |
A194 4 |
A194 8 |
A194 8M |
|
15 |
Gland Eyebolt |
A193 B7 |
A193 B16 |
A193 B8 |
A193 B8M |
|
16 |
Pin |
A276 420 |
A276 304 |
||
|
Suitable Medium |
W.O.G.etc |
W.O.G.etc |
HNO 3 ,CH 3 OOH etc |
||
|
Suitable Temperature |
-29 oC~425 oC |
-29 oC~550 oC |
-196 oC~200 oC |
||
Note: Other materials are available upon request.
CS=Carbon Steel; AS=S=Alloy Steel; SS=Stainless Steel.
Class 800Lb, Dimension (mm) and Weight (Kg)
|
NPS |
1/2” |
3/4” |
1” |
11/4” |
11/2” |
2” |
|
L |
98 |
111 |
120 |
140 |
140 |
170 |
|
H(open) |
175 |
215 |
254 |
305 |
305 |
365 |
|
W |
100 |
125 |
160 |
160 |
180 |
200 |
|
Weight |
5 |
6.3 |
7.6 |
9.8 |
13.8 |
14.0 |
